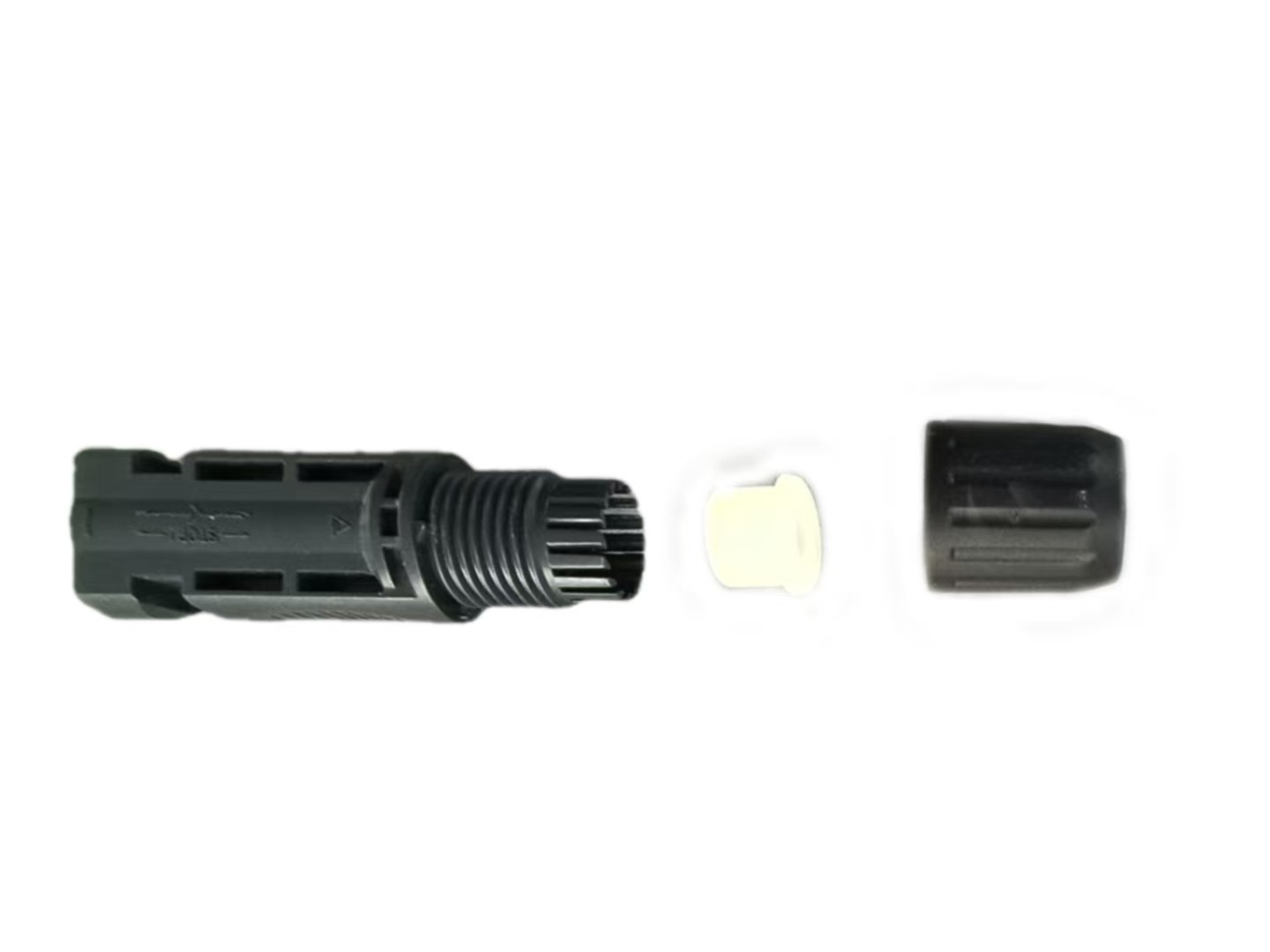

TUV UL Certified Photovoltaic Connector for Solar PV System IP65/IP68 Waterproofness
Product Description:
The Photovoltaic Connector is made with high-quality Insulation Material such as PPO/PA, which is known for its excellent electrical and thermal properties. The use of this material ensures that the connector is durable and can withstand harsh weather conditions. It is rated for use in Safety Class II applications, making it safe to use in various solar panel installations.
The PV Connector is compatible with different Wire Sizes, including 2.5mm², 4mm², and 6mm². This means that you can easily choose the wire size that suits your specific needs. The connector can handle a Rated Voltage of up to 1500 VDC, making it highly efficient and reliable.
The Photovoltaic Connector comes with an IP Rating of IP65/IP68, which means that it is dust-tight and can withstand water immersion up to a certain level. This makes it ideal for outdoor use and ensures that the connector is protected from environmental factors.
The Contact Material used in this PV Connector is of high quality, ensuring that you get a secure and stable connection every time. The connector is designed to handle a Rated Current of up to 39A (TUV) and 35A (UL), making it suitable for use in various solar panel installations.
Overall, our Photovoltaic Connector is a reliable and safe solution for your solar panel installations. It is designed with high-quality materials and can handle different wire sizes, making it highly versatile. The IP Rating and Safety Class II rating ensure that the connector is protected from environmental factors and is safe to use in various applications. Get your Photovoltaic Connector today and enjoy a secure and stable connection for your solar panel installations.
Features:
- Rated Current: 39A (TUV); 35A (UL)
- Ip Rating: IP65/IP68
- Temperature Range: -40℃ To +85℃; -40℃~+90℃
- Safety Class: ClassⅡ
- Contact Material: Copper; Tin-plated
- Energy Storage: Not Applicable
Technical Parameters:
| Item | Description |
| Type | PV Module Accessories |
| Rated Voltage | 1500 VDC |
| Certifications | TUV, UL |
| Safety Class | Class Ⅱ |
| Wire Size | 2.5mm², 4mm², 6mm² |
| Contact Material | Copper; Tin-plated |
| IP Rating | IP65/IP68 |
| Rated Current | 39A (TUV); 35A (UL) |
| Temperature Range | -40℃ to +85℃; -40℃~+90℃ |
| Flame Rating | V-0 (TUV); 5VA (UL) |
